An extra hand when recording.

I've named it COUPLA. I was thrilled and humbled to find out that this little device would be useful for a raft of audio-heads, after posting the prototype on Twitter. So, I have built a small batch of them to sell!
coupla-microphone-rig-attachment

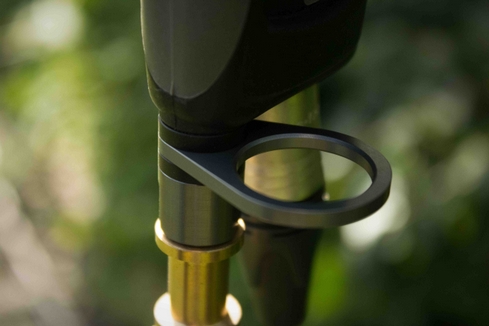

COUPLA was designed to attach a mic rig temporarily and swiftly onto my recording bag, so that I have both hands free to sort cables, move mic stands and the like. I have been using it for a few months now and it has been a handy device while on-the-go.

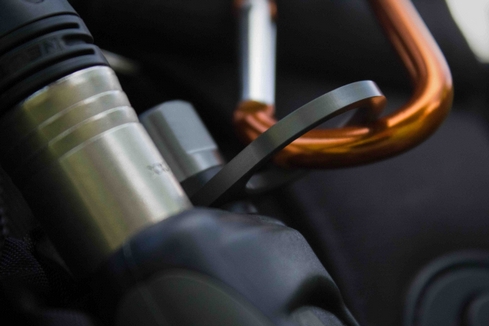

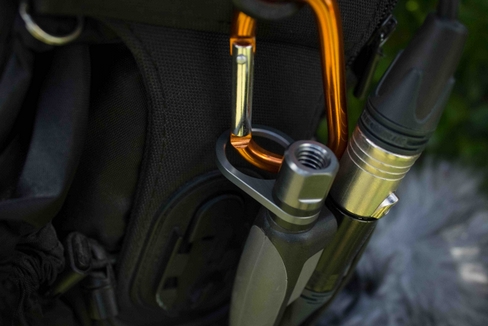

The only option was either to place my mic rig back in its case or balance it on the top of my recording bag. It now takes a matter of seconds to clip the mic rig securely to a carabiner on my bag. It has enabled me to be more efficient when recording handheld.
coupla-microphone-rig-attachment

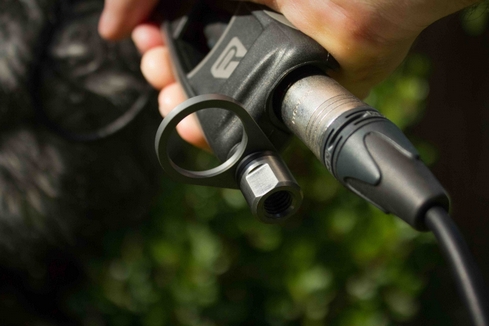

COUPLA has an additional standard 3/8" screw thread within the bolt head, so that the mic rig is still able to connect to a mic stand or mount.

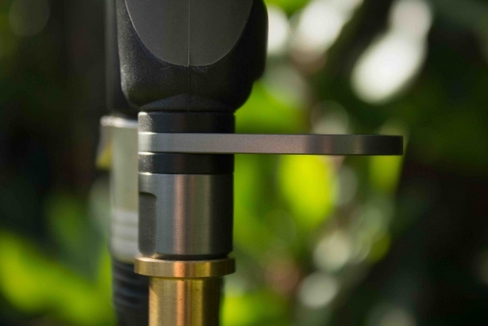

The flat sides on the bolt head enhance the grip when fastening or detaching the COUPLA by hand, or via a 13mm spanner.
coupla-microphone-rig-attachment

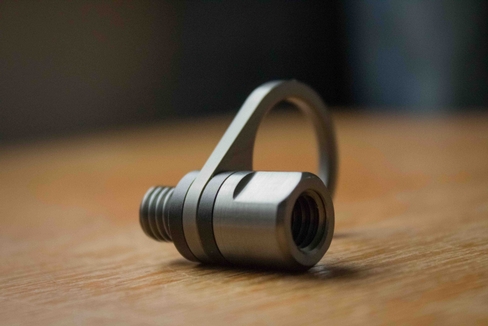

The bolt and plate are machined from aluminium and the two washers from nylon. These materials have been chosen because of their ruggedness and aesthetics, giving a combined weight of just 12g!

The aluminium has been anodised in titanium grey to increase resilience against scratches and bumps whilst out and about recording. Plus, it looks awesome!
coupla-microphone-rig-attachment

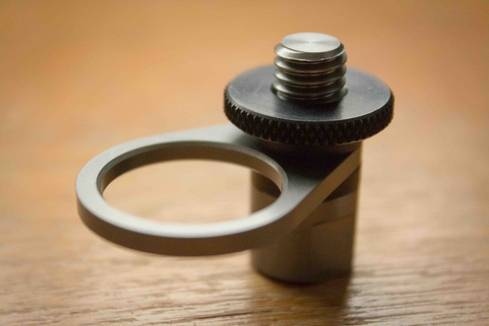

COUPLA comes supplied with a knurled lock nut that fastens onto the bolt thread, clamping the washers and plate in place when the COUPLA is detached from the mic rig.
coupla-microphone-rig-attachment
This project realises one of my annual goals and I am proud to have followed through with the idea. It's inherently simple - one of those 'wouldn't it be cool to have something like that' thoughts - but I wanted to make sure I did it properly, to make COUPLA look the part on a mic rig. Simple, robust, functional and elegant.
coupla-microphone-rig-attachment
£18
I would love to hear what you think of COUPLA! Any suggestions to improve the design?
